Aquaquip QC LED Retro Fit Pool Light - MULTI COLOUR- Variable Voltage

General
Details
Documentation

Aquaquip QC LED Multi-Colour Retro Fit Pool Light (12V AC - 32V AC)

From the most simple to the extra-ordinary, lighting is very often the most eye-catching aspect of your pool and spa. The name Aqua-Quip is synonymous with award winning pool builders, aiding with the design challenges to best fulfil customers’ lighting expectations for that special evening atmosphere.

QC Series LED Surface Mounted Pool Lights for Existing Pools

Features:

Quick-connect feature
Amazing LED colours
Variable voltage technology
Energy efficient
Universal mounting bracket

Upgrade Your existing pool lights to Aqua-Quip without lowering the pool water level or changing the transformer.

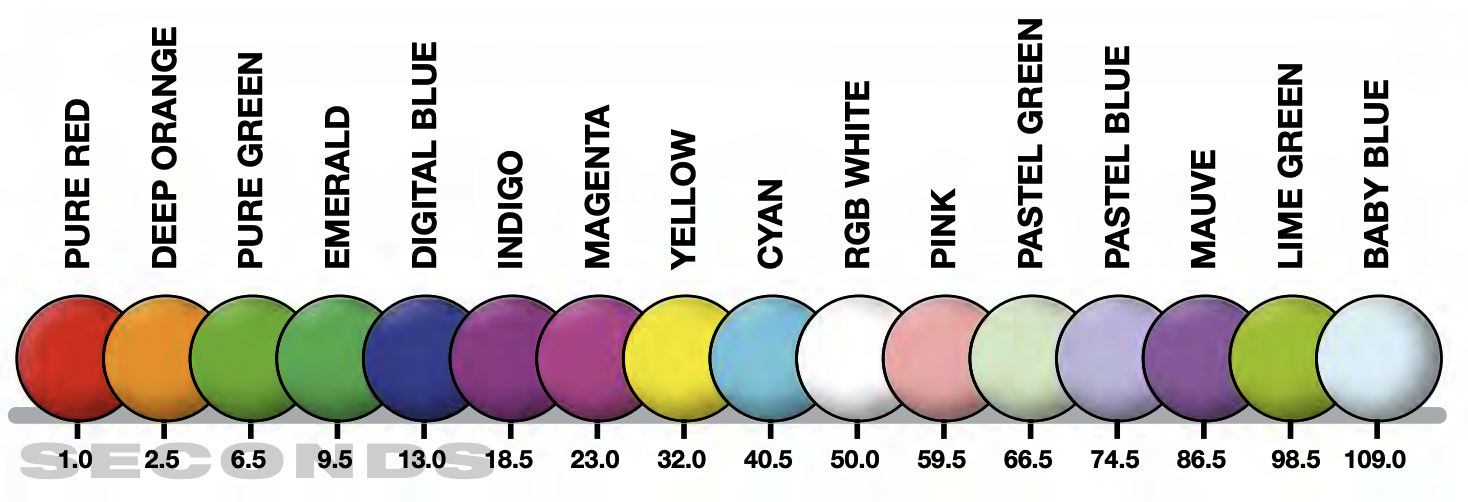

Fixed Colour LEDs: The advantage Spectrum IX technology allows the user to program their favourite mode. Choose from a variety of scroll and flash modes or program your own favourite default colour by selecting from the innovative Colour Palette Selection Mode.

Variable Voltage Technology: Allows LED Retro-Fit lights to be operated from voltages between 12v AC to 32V AC.

Aqua-Quip Surface Mounted Retro-Fit Lights are able to convert the following brands in concrete pools:

Warranty
Warranty Period - 12 months

Aquaquip QC LED Multi-Colour Retro Fit Pool Light (12V AC - 32V AC)

Power Requirement for Fixed Colour and Multi-Colour LEDs: 12V ~ 32V AC 50/60Hz.
Pool Light Protection Rating: IPX8 to 2.0m depth
Pool Light Protection Rating: IPX8 to 2.0m depth.
Temperature Range: -10°C ~ +40°C pool water temperature.
Installation Location: 200mm ~ 400mm below water level.
Power Consumption (Fixed Colour LEDs): Maximum 16VA at all voltages 12V ~ 32V.
Power Consumption (Multi-Colour LEDs): Maximum 22VA at all voltages 12V ~ 32V.
Rated Lamp Life: >50,000 hours..
Voltage Tolerance (Fixed Colour and Multi-Colour LEDs): 10.5V AC ~ 35V AC.
Light Colour: White = >5000K, Blue = 475nm, Green = 525nm.
Light Output (Typical): White = 1050 Lumens, Blue = 300 Lumens, Green = 650 Lumens.
Fault Protection: Power Cycle “Run Dry” thermal cut-out. Voltage transient clamping

AquaQuip Multi Colour LED Pool Light Brochure

View

AquaQuip Multi Colour LED Pool Light Manual

View

AquaQuip Multi Colour LED Programming Manual

View
